Project Name:

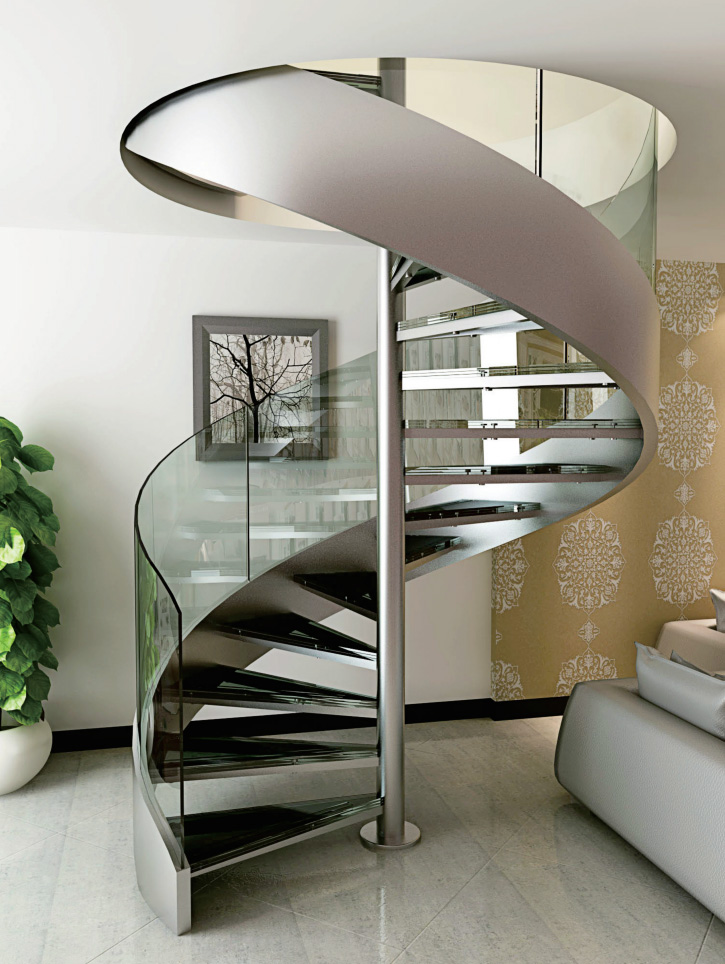

England Mick Spiral Staircase
Production Date: 2013.03.12
Model No.: DMS-1062
Components:
stringer: ￠114×4.0mm round tube A3 steel powder coated, sus304, sus316 satin finish/mirror finish
stringer: 10mm thick steel plate A3 steel powder coated, sus304, sus316 satin finish/mirror finish

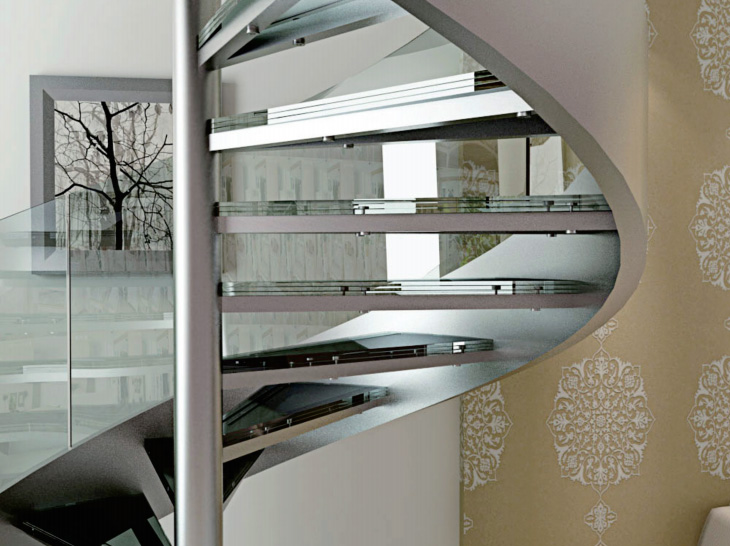

tread: 10+1.52PVB+10+1.52PVB+10mm tempered glass clear
tread support: 38x38x2.0mm square tube A3 steel powder coated, sus304, sus316 satin finish/miror finish
stair railing: 6+1.14PVB+6mm tempered glass clear
