Project Name:

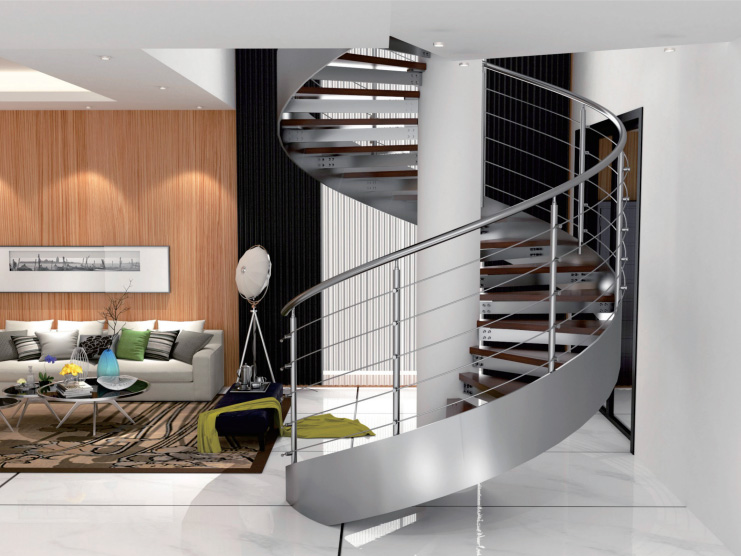

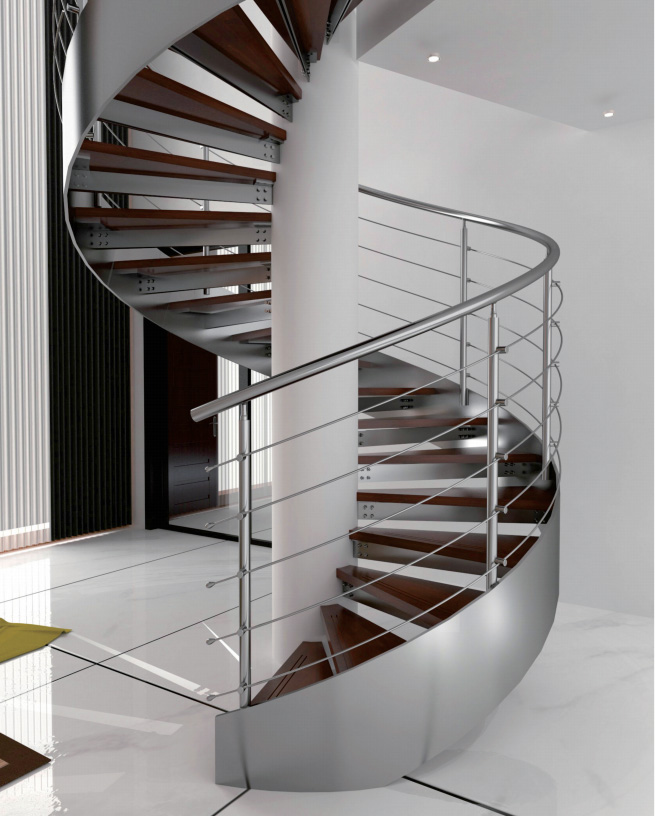

Canada hotel Spiral Staircase
Production Date: 2015.05.28
Model No.: DMS-1087
Components:
central column: ￠304.8×6.0mm, A3steel, powder coated white
stringer: 8mm thick, sus304/sus316, satin finish/mirror finish
handrail: ￠50.8×1.5mm, sus304/sus316, satin finish/mirror finish
baluster: c42.4×1.5mm, sus304/sus316, satin finish/mirror finish
rod: c12.7×1.0mm, sus304/sus316, satin finish/mirror finish
tread: 40mm thick, beech, natural color
