Project Name:

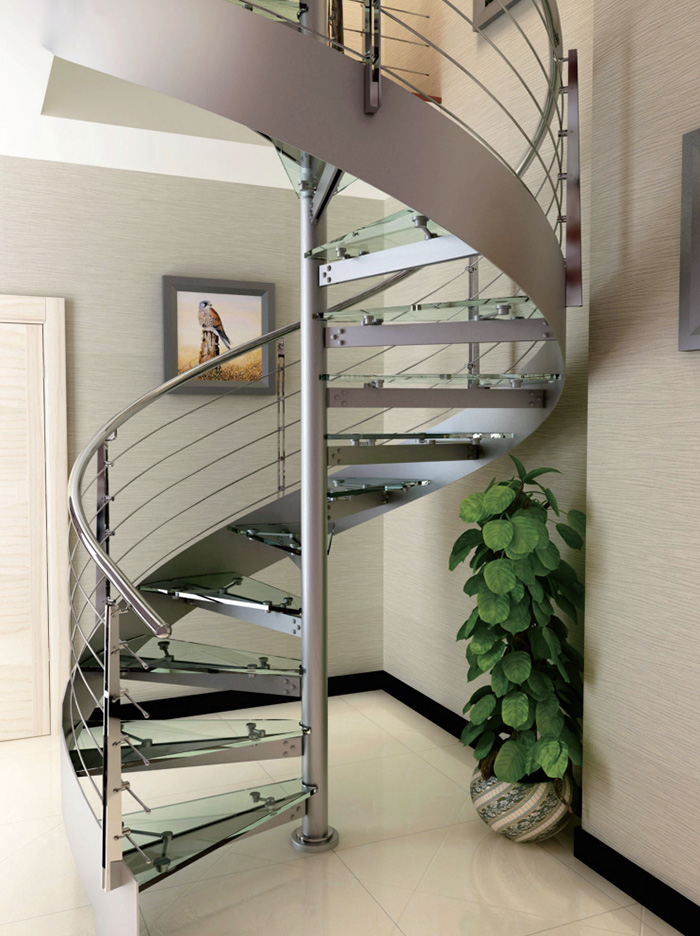

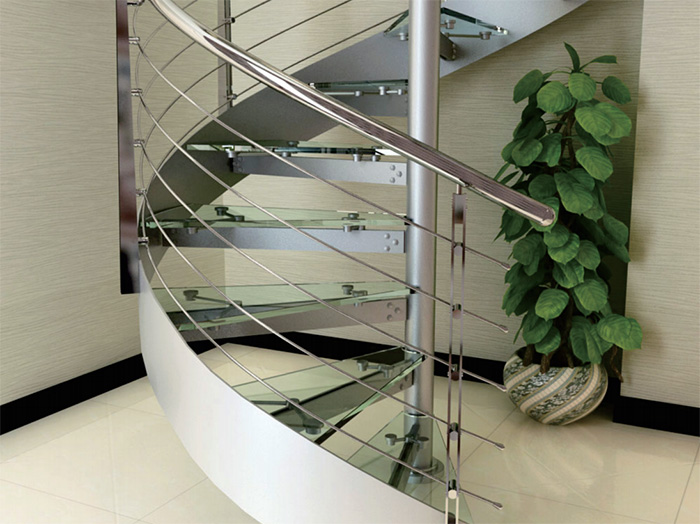

America Eric Spiral Staircase
Production Date: 2013.03.15
Model No.: DMS-1069
Components:
central column: ￠108×4.0mm A3 steel powder coated, sus304, sus316 satin finish/mirror finish
side stringer plate: 8mm thick steel plate A3 steel powder coated, sus304, sus316 satin finish/mirror finish
stringer splice plate: 6.0mm thick A3 steel powder coated, sus304, sus316 satin finish/mirror finish
tread: 12+1.52PVB+12mm tempered glass clear
baluster: 6mm thick double plate A3 steel powder coated, sus304, sus316 satin finish/mirror finish
handrail: ￠50.8×1.5mm round tube A3 steel powder coated, sus304, sus316 satin finish/mirror finish
rod: ￠8mm solid rod A3 steel powder coated, sus304, sus316 satin finish/mirror finish
