Project Name:

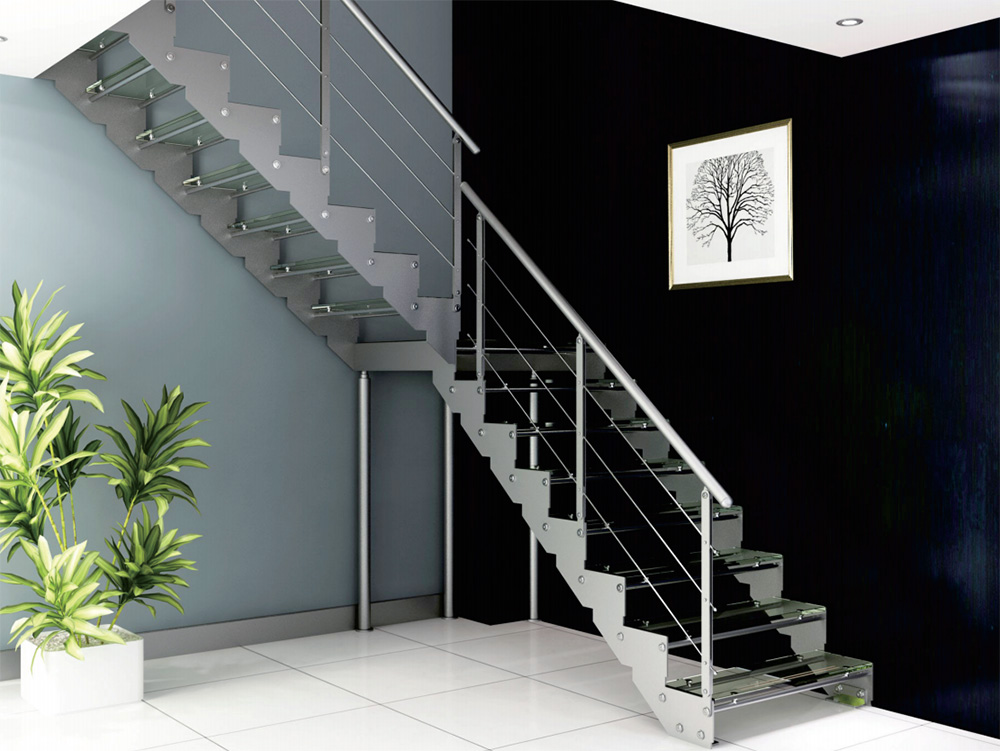

Algeria Pinsky Staircase
Production Date: 2013.07.22
Model No.: DMS-3036
Components:
stringer: 8mm thick steel plate A3 steel powder coated, sus304, sus316 satin finish/mirror finish
supporting column: ￠60×3.0mm round tube A3 steel powder coated, sus304, sus316 satin finish/mirror finish
tread support: 30x30x2.0mm square tube A3 steel powder coated, sus304, sus316 satin finish/mirror finish
tread: 12+1.52PVB+12mm tempered glass clear
baluster: 8mm A3 steel powder coated, sus304, sus316 satin finish/miror finish
handrail: ￠50.8×1.5mm round tube A3 steel powder coated, sus304, sus316 satin finish/mirror finish
rod: ￠8mm solid rod A3 steel powder coated, sus304, sus316 satin finish/mirror finish
